Medium Flow Gas Mixer – GB4000 Series

4-Channels Gas Blender 4000 Series



• Accuracy: (for each channel) N2, 20 ºC, 101.325 kPa (1 atm): 1% of FS

• Repeatability: 0,10% of reading

• Response time: (for each channel) 500 ms

• Power Supply: In Bundle

• Operation Pressure: Max 3 bar

• Working Temperature: 0 – 50 °C

• Mass Flow Rates: (for each channel) 0 – 5000 mL/min (standard)

• Total Mixture Flow Rate: Up to 20 L/min

• Gases: N2, O2, CO2, CH4, Air, He, H2. (additional gases supported on request)

• Compatibility: Profibus, Modbus, Matlab Simulink

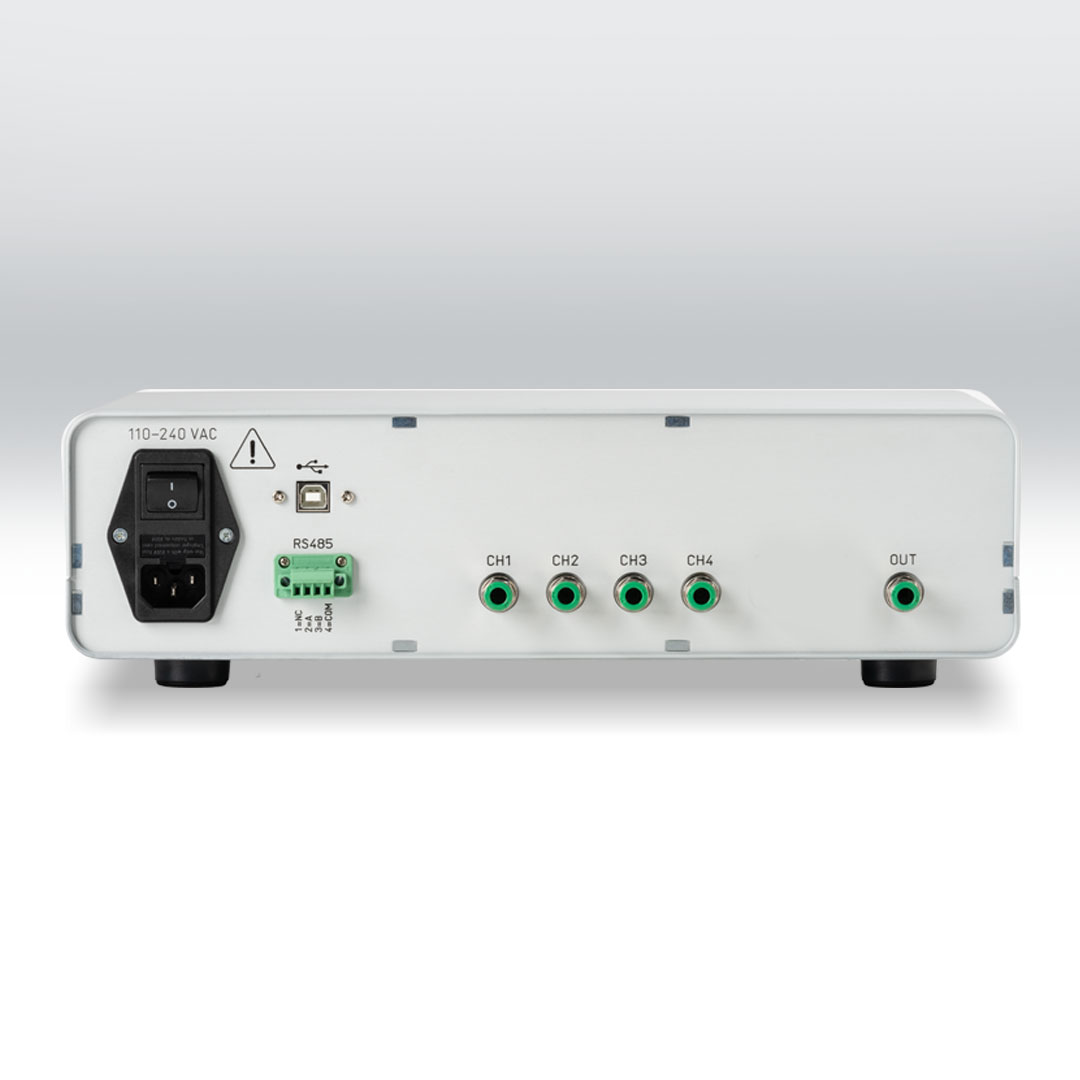

• Communication: USB PC Interface RS485 with open proprietary protocol.

• Fittings: Swagelok NPT or Push-in fittings for 6-4mm tubes. Other on request

• Inlet Gas Channel: 4 Inputs

• Outlet Gas Channel: 1 Output of mixed gases

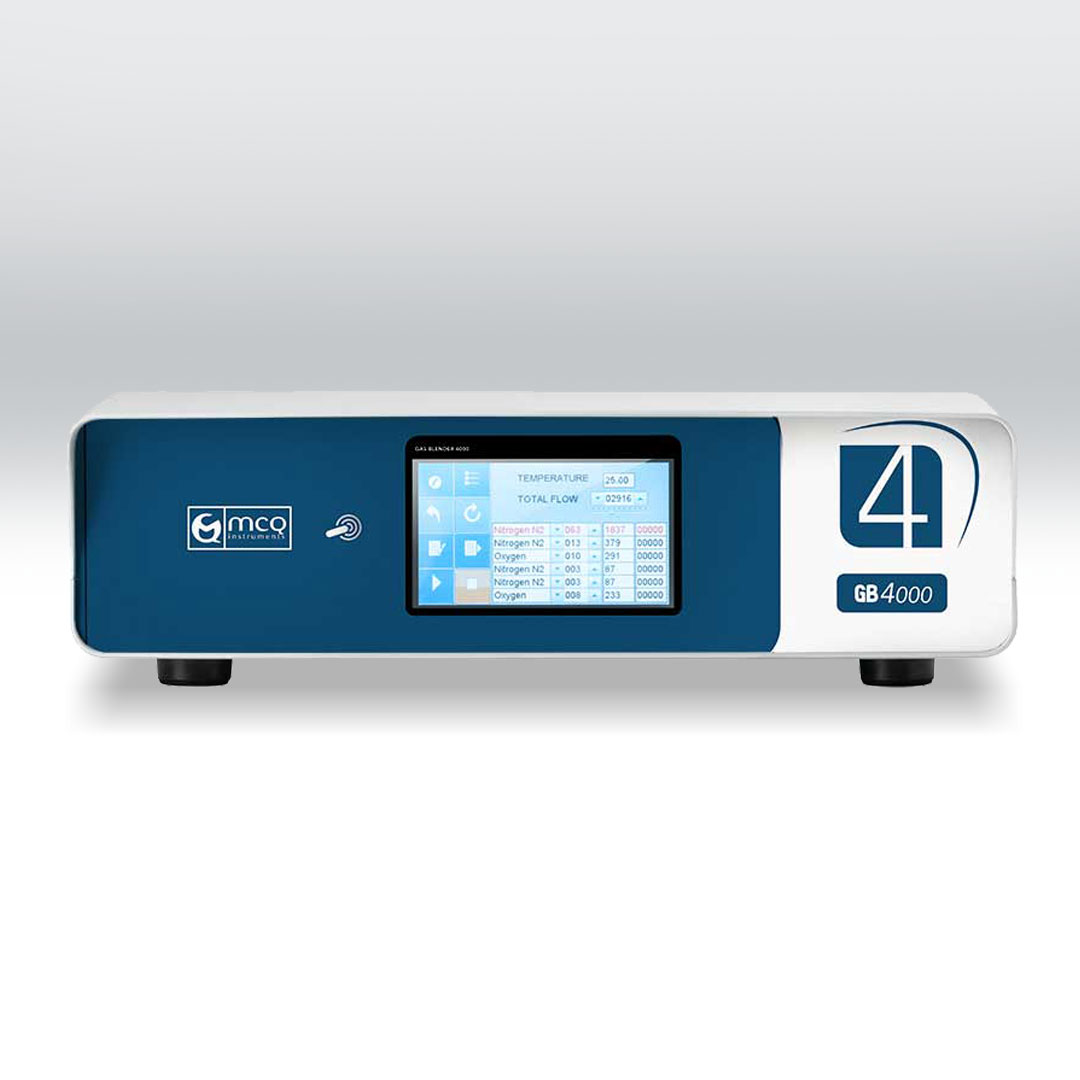

• User Interface: Gas mixing software. Touch Display.

• Certifications: CE, TUV, cTUVUS, Made in Italy
