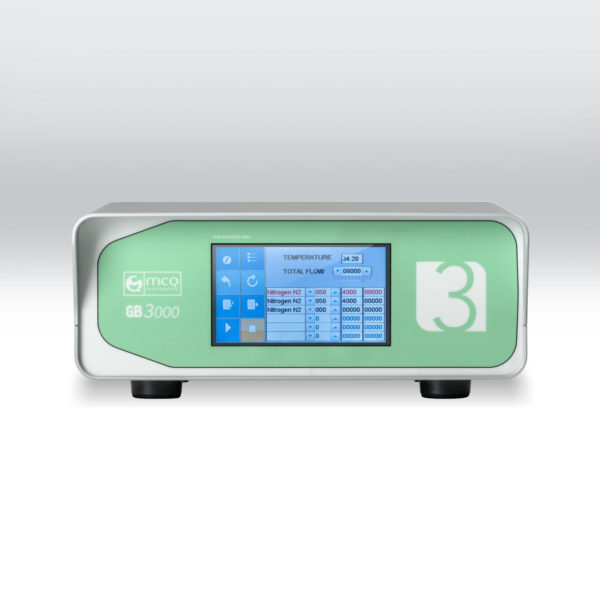

Medium Flow Gas Mixer – GB3000 Series

3-Channels Gas Blender 3000 Series



• Accuracy: (for each channel)
N2, 20 ºC, 101.325 kPa (1 atm): 1% of FS

• Repeatability:
0,10% of reading

• Response time: (for each channel)
500 ms

• Power Supply:
In Bundle

• Operation Pressure:
Max 3 bar

• Working Temperature:
0 – 50 °C

• Mass Flow Rates: (for each channel)
0 – 5000 mL/min (standard)

• Total Mixture Flow Rate:
Up to 15 L/min

• Gases:
N2, O2, CO2, CH4, Air, He, H2. (additional gases supported on request)

• Compatibility:
Profibus, Modbus, Matlab Simulink

• Communication:
USB PC Interface RS485 with open proprietary protocol.

• Fittings:
Swagelok NPT or Push-in fittings for 6-4mm tubes. Other on request

• Inlet Gas Channel:
3 Inputs

• Outlet Gas Channel:
1 Output of mixed gases

• User Interface:
Gas mixing software. Touch Display.

• Certifications:
CE, TUV, cTUVUS, Made in Italy
