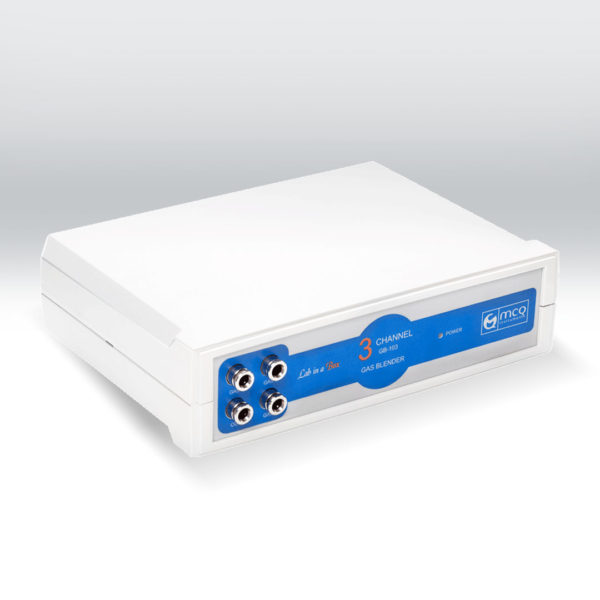

Low Flow Gas Mixer – GB100 Series

3-Channels Gas Blender 100 Series



• Accuracy: (for each channel) N2, 20 °C, 101.325 kPa (1 atm) 5 – 100% FS: 1% of setpoint < 5% FS: 0,2% of FS

• Repeatability: 0,16% of reading

• Response time: (for each channel) 50 ms

• Power Supply: 16-36 V DC – Min. 1,5 A

• Operation Pressure: Max 25 psi

• Working Temperature: 0 – 50 °C

• Mass Flow Rates: (for each channel) 0 – 500 mL/min (standard); 0 – 200 mL/min (on request)

• Total Mixture Flow Rate: Up to 1,5 L/min

• Gases: N2, O2, CO2, CH4, Air, (additional gases supported on request)

• Communication: USB PC Interface, BUS RS 485 (*). Connect up to 64 Gas Blenders to obtain different mixing and blending solutions.
(*) Function for future use. At the moment not active.

• Fittings: Push-in fittings for 6-4 mm tubes. Other on request

• Inlet Gas Channel: 3 Input

• Outlet Gas Channel: 1 Output of mixed gases

• User Interface: Gas mixing software. 1 LED signal interface

• Certifications: CE, TUV, cTUVUS, Made in Italy
