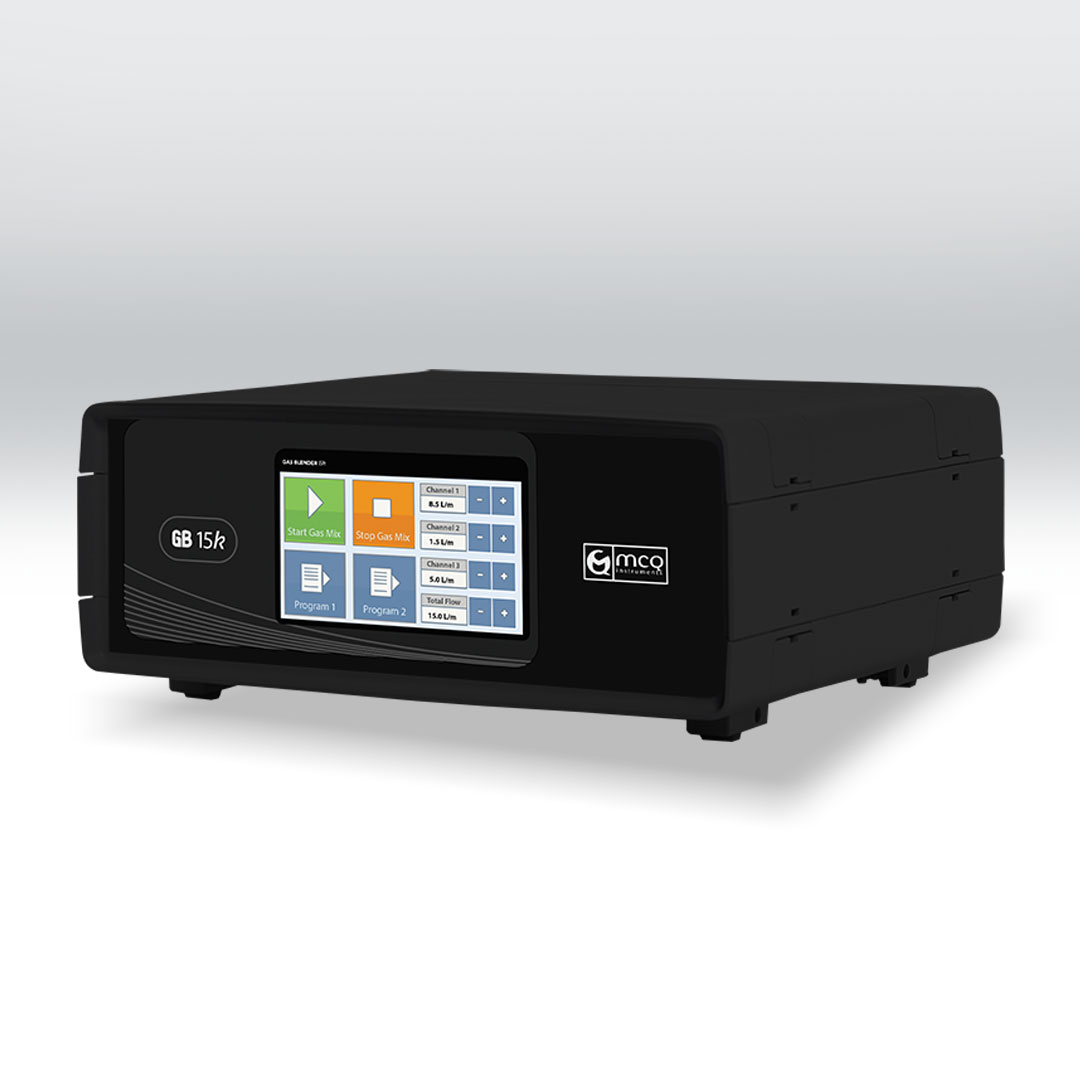

Industrial Flow Gas Mixer – GB15k Series

3-Channels Gas Blender 15k Series

• Accuracy: (for each channel) N2, 20 ºC, 101.325 kPa (1 atm): 0,1-100% / FS: 2% of setpoint

• Repeatability: 0,20% of reading

• Response time: (for each channel) 1000 ms

• Power Supply: In Bundle

• Operation Pressure: Max 5 bar

• Working Temperature: 0 – 50 °C

• Mass Flow Rates: (for each channel) 0 – 15000 mL/min (standard)

• Total Mixture Flow Rate: Up to 45 L/min

• Gases: N2, O2, CO2, CH4, Air, He, H2. (additional gases supported on request)

• Compatibility: Profibus, Modbus, Matlab Simulink

• Communication: RS485 with open proprietary protocol.

• Fittings: It depends from the applications.

• Inlet Gas Channel: 3 Inputs

• Outlet Gas Channel: 1 Output of mixed gases

• User Interface: Resistive Touch Display.

• Certifications: CE, Made in Italy
